ME 系列外螺纹外头

立即咨询

英制

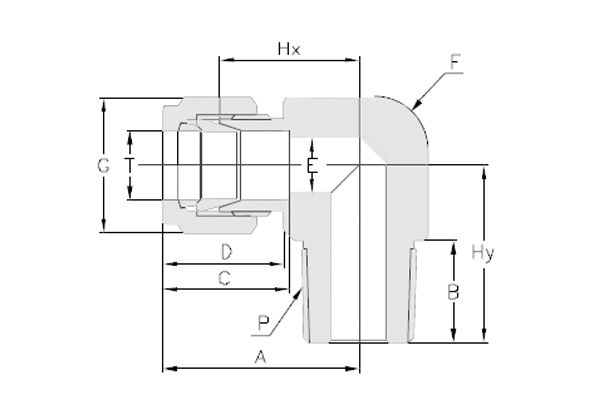

T 管外径 in.	P NPT螺纹 in.	型号	A in.	B in.	C in.	D in.	E in.	F 六角尺寸 in.	G 六角尺寸 in.	Hx in.	Hy in.
1/8	1/8	SS-ME-TF2-NT2	0.93	0.38	0.60	0.50	0.09	7/16	7/16	0.67	0.70
1/8	1/4	SS-ME-TF2-NT4	0.97	0.56	0.60	0.50	0.09	1/2	7/16	0.71	0.92
3/16^*	1/8	SS-ME-TF3-NT2	1.00	0.38	0.63	0.54	0.12	1/2	1/2	0.74	0.74
3/16^*	1/4	SS-ME-TF3-NT4	1.00	0.56	0.63	0.54	0.12	1/2	1/2	0.74	0.92
1/4	1/8	SS-ME-TF4-NT2	1.06	0.38	0.70	0.60	0.19	1/2	9/16	0.77	0.74
1/4	1/4	SS-ME-TF4-NT4	1.06	0.56	0.70	0.60	0.19	1/2	9/16	0.77	0.92
1/4	3/8	SS-ME-TF4-NT6	1.17	0.56	0.70	0.60	0.19	11/16	9/16	0.88	1.03
1/4	1/2	SS-ME-TF4-NT8	1.25	0.75	0.70	0.60	0.19	13/16	9/16	0.96	1.30
5/16^*	1/8	SS-ME-TF5-NT2	1.13	0.38	0.73	0.64	0.19	9/16	5/8	0.84	0.78
5/16^*	1/4	SS-ME-TF5-NT4	1.13	0.56	0.73	0.64	0.25	9/16	5/8	0.84	0.96
5/16^*	3/8	SS-ME-TF5-NT6	1.20	0.56	0.73	0.64	0.25	11/16	5/8	0.91	1.03
3/8	1/8	SS-ME-TF6-NT2	1.20	0.38	0.76	0.66	0.19	5/8	11/16	0.91	0.82
3/8	1/4	SS-ME-TF6-NT4	1.20	0.56	0.76	0.66	0.28	5/8	11/16	0.91	1.00
3/8	3/8	SS-ME-TF6-NT6	1.23	0.56	0.76	0.66	0.28	11/16	11/16	0.94	1.03
3/8	1/2	SS-ME-TF6-NT8	1.31	0.75	0.76	0.66	0.28	13/16	11/16	1.02	1.30
3/8	3/4	SS-ME-TF6-NT12	1.46	0.75	0.76	0.66	0.28	1-1/16	11/16	1.17	1.45
1/2	1/4	SS-ME-TF8-NT4	1.42	0.56	0.86	0.90	0.28	13/16	7/8	1.02	1.11
1/2	3/8	SS-ME-TF8-NT6	1.42	0.56	0.86	0.90	0.38	13/16	7/8	1.02	1.11
1/2	1/2	SS-ME-TF8-NT8	1.42	0.75	0.86	0.90	0.41	13/16	7/8	1.02	1.30
1/2	3/4	SS-ME-TF8-NT12	1.57	0.75	0.86	0.90	0.41	1-1/16	7/8	1.17	1.45
5/8^*	3/8	SS-ME-TF10-NT6	1.50	0.56	0.86	0.96	0.38	15/16	1	1.10	1.19
5/8^*	1/2	SS-ME-TF10-NT8	1.50	0.75	0.86	0.96	0.47	15/16	1	1.10	1.38
5/8^*	3/4	SS-ME-TF10-NT12	1.57	0.75	0.86	0.96	0.50	1-1/16	1	1.17	1.45
3/4	1/2	SS-ME-TF12-NT8	1.57	0.75	0.86	0.96	0.47	1-1/16	1-1/8	1.17	1.45
3/4	3/4	SS-ME-TF12-NT12	1.57	0.75	0.86	0.96	0.62	1-1/16	1-1/8	1.17	1.45
1	3/4	SS-ME-TF16-NT12	1.93	0.75	1.04	1.23	0.62	1-3/8	1-1/2	1.45	1.64
1	1	SS-ME-TF16-NT16	1.93	0.75	1.04	1.23	0.88	1-3/8	1-1/2	1.45	1.83

T 管外径 in.	P 锥管螺纹 R ( BSPT )	型号	A in.	B in.	C in.	D in.	E in.	F 六角尺寸 in.	G 六角尺寸 in.	Hx in.	Hy in.
1/8	1/8	SS-ME-TF2-RT2	0.93	0.38	0.60	0.50	0.09	7/16	7/16	0.67	0.70
1/8	1/4	SS-ME-TF2-RT4	0.97	0.56	0.60	0.50	0.09	1/2	7/16	0.71	0.92
1/4	1/8	SS-ME-TF4-RT2	1.06	0.38	0.70	0.60	0.19	1/2	9/16	0.77	0.74
1/4	1/4	SS-ME-TF4-RT4	1.06	0.56	0.70	0.60	0.19	1/2	9/16	0.77	0.92
1/4	3/8	SS-ME-TF4-RT6	1.17	0.56	0.70	0.60	0.19	11/16	9/16	0.88	1.03
3/8	1/4	SS-ME-TF6-RT4	1.20	0.56	0.76	0.66	0.28	5/8	11/16	0.91	1.00
3/8	3/8	SS-ME-TF6-RT6	1.23	0.56	0.76	0.66	0.28	11/16	11/16	0.94	1.03
1/2	3/8	SS-ME-TF8-RT6	1.42	0.56	0.86	0.90	0.38	13/16	7/8	1.02	1.11
1/2	1/2	SS-ME-TF8-RT8	1.42	0.75	0.86	0.90	0.41	13/16	7/8	1.02	1.30
3/4	3/4	SS-ME-TF12-RT12	1.57	0.75	0.86	0.96	0.62	1-1/16	1-1/8	1.17	1.45

公制

T 管外径 mm	P NPT螺纹 in.	型号	A mm	B mm	C mm	D mm	E mm	F 六角尺寸 mm	G 六角尺寸 mm	Hx mm	Hy mm
3	1/8	SS-ME-TF3M-NT2	23.6	9.70	15.3	12.9	2.4	11.1	12	17.0	17.8
3	1/4	SS-ME-TF3M-NT4	24.6	14.2	15.3	12.9	2.4	16.0	12	18.0	23.4
6	1/8	SS-ME-TF6M-NT2	27.0	9.70	17.7	15.3	4.8	12.7	14	19.6	18.8
6	1/4	SS-ME-TF6M-NT4	27.0	14.2	17.7	15.3	4.8	16.0	14	19.6	23.4
6	3/8	SS-ME-TF6M-NT6	29.8	14.2	17.7	15.3	4.8	20.5	14	22.4	26.2
6	1/2	SS-ME-TF6M-NT8	31.8	19.0	17.7	15.3	4.8	23.8	14	24.4	33.0
8	1/8	SS-ME-TF8M-NT2	28.8	9.70	18.6	16.2	4.8	16.0	16	21.3	19.8
8	1/4	SS-ME-TF8M-NT4	28.8	14.2	18.6	16.2	6.4	16.0	16	21.3	24.4
8	3/8	SS-ME-TF8M-NT6	30.6	14.2	18.6	16.2	6.4	20.5	16	23.1	26.2
8	1/2	SS-ME-TF8M-NT8	32.6	19.0	18.6	16.2	6.4	23.8	16	25.1	33.0
10	1/8	SS-ME-TF10M-NT2	31.5	9.70	19.5	17.2	4.8	16.0	19	23.9	21.6
10	1/4	SS-ME-TF10M-NT4	31.5	14.2	19.5	17.2	7.1	16.0	19	23.9	26.2
10	3/8	SS-ME-TF10M-NT6	31.5	14.2	19.5	17.2	7.9	20.5	19	23.9	26.2
10	1/2	SS-ME-TF10M-NT8	33.5	19.0	19.5	17.2	7.9	23.8	19	25.9	33.0
12	1/4	SS-ME-TF12M-NT4	36.0	14.2	22.0	22.8	7.1	20.5	22	25.9	28.2
12	3/8	SS-ME-TF12M-NT6	36.0	14.2	22.0	22.8	9.5	20.5	22	25.9	28.2
12	1/2	SS-ME-TF12M-NT8	36.0	19.0	22.0	22.8	9.5	23.8	22	25.9	33.0
12	3/4	SS-ME-TF12M-NT12	39.8	19.0	22.0	22.8	9.5	28.6	22	29.7	36.8
16^*	3/8	SS-ME-TF16M-NT6	38.0	14.2	22.0	24.4	9.5	23.8	25	27.9	30.2
16^*	1/2	SS-ME-TF16M-NT8	38.0	19.0	22.0	24.4	11.9	23.8	25	27.9	35.1
16^*	3/4	SS-ME-TF16M-NT12	39.8	19.0	22.0	24.4	12.7	27	25	29.7	36.8
18^*	1/2	SS-ME-TF18M-NT8	39.8	19.0	22.0	24.4	11.9	27	30	29.7	36.8
18^*	3/4	SS-ME-TF18M-NT12	39.8	19.0	22.0	24.4	15.1	27	30	29.7	36.8
22^*	3/4	SS-ME-TF22M-NT12	44.6	19.0	22.0	26.0	15.9	35	32	34.5	41.7
22^*	1	SS-ME-TF22M-NT16	44.6	23.9	22.0	26.0	18.3	35	32	34.5	46.5
25^*	3/4	SS-ME-TF25M-NT12	49.1	19.0	26.5	31.3	15.9	35	38	36.8	41.7
25^*	1	SS-ME-TF25M-NT16	49.1	23.9	26.5	31.3	21.8	35	38	36.8	46.5

T 管外径 mm	P 锥管螺纹 R ( BSPT )	型号	A mm	B mm	C mm	D mm	E mm	F 六角尺寸 mm	G 六角尺寸 mm	Hx mm	Hy mm
3	1/8	SS-ME-TF3M-RT2	23.6	9.70	15.3	12.9	2.4	11.1	12	17.0	17.8
6	1/4	SS-ME-TF6M-RT4	27.0	14.2	17.7	15.3	4.8	16.0	14	19.6	23.4
6	3/8	SS-ME-TF6M-RT6	29.8	14.2	17.7	15.3	4.8	20.5	14	22.4	26.2
8	1/2	SS-ME-TF8M-RT8	32.6	19.0	18.6	16.2	6.4	23.8	16	25.1	33.0

*：无常规库存
