U 系列管接头

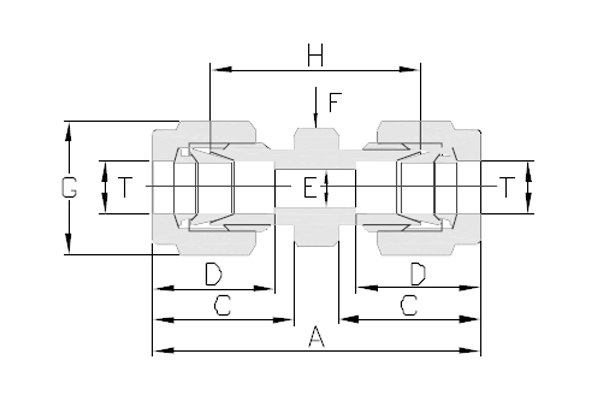

- 安装尺寸图
- 订购指南
英制
|
T 管外径 in. |
型 号 |
A in. |
C in. |
D in. |
E in. |
F 六角尺寸 in. |
G 六角尺寸 in. |
H in. |
| 1/8 | SS-U-TF2 | 1.40 | 0.60 | 0.50 | 0.09 | 7/16 | 7/16 | 0.88 |
| 3/16* | SS-U-TF3 | 1.47 | 0.63 | 0.54 | 0.12 | 7/16 | 1/2 | 0.95 |
| 1/4 | SS-U-TF4 | 1.61 | 0.70 | 0.60 | 0.19 | 1/2 | 9/16 | 1.03 |
| 5/16* | SS-U-TF5 | 1.69 | 0.73 | 0.64 | 0.25 | 9/16 | 5/8 | 1.11 |
| 3/8 | SS-U-TF6 | 1.77 | 0.76 | 0.66 | 0.28 | 5/8 | 11/16 | 1.19 |
| 1/2 | SS-U-TF8 | 2.02 | 0.86 | 0.90 | 0.41 | 13/16 | 7/8 | 1.22 |
| 5/8* | SS-U-TF10 | 2.05 | 0.86 | 0.96 | 0.50 | 15/16 | 1 | 1.25 |
| 3/4 | SS-U-TF12 | 2.11 | 0.86 | 0.96 | 0.62 | 1-1/16 | 1-1/8 | 1.31 |
| 1 | SS-U-TF16 | 2.55 | 1.04 | 1.23 | 0.88 | 1-3/8 | 1-1/2 | 1.59 |
公制
|
T 管外径 mm |
型 号 |
A mm |
C mm |
D mm |
E mm |
F 六角尺寸 mm |
G 六角尺寸 mm |
H mm |
| 3 | SS-U-TF3M | 35.3 | 15.3 | 12.9 | 2.4 | 12 | 12 | 22.1 |
| 6 | SS-U-TF6M | 41.0 | 17.7 | 15.3 | 4.8 | 14 | 14 | 26.2 |
| 8 | SS-U-TF8M | 43.2 | 18.6 | 16.2 | 6.4 | 15 | 16 | 28.2 |
| 10 | SS-U-TF10M | 46.2 | 19.5 | 17.2 | 7.9 | 18 | 19 | 31.0 |
| 12 | SS-U-TF12M | 51.2 | 22.0 | 22.8 | 9.5 | 22 | 22 | 31.0 |
| 14 | SS-U-TF14M | 52.0 | 22.0 | 24.4 | 11.1 | 24 | 25 | 31.8 |
| 16* | SS-U-TF16M | 52.0 | 22.0 | 24.4 | 12.7 | 24 | 25 | 31.8 |
| 18* | SS-U-TF18M | 53.5 | 22.0 | 24.4 | 15.1 | 27 | 30 | 33.3 |
| 22* | SS-U-TF22M | 55.0 | 22.0 | 26.0 | 18.3 | 30 | 32 | 34.8 |
| 25* | SS-U-TF25M | 65.0 | 26.5 | 31.3 | 21.8 | 35 | 38 | 40.4 |
*：无常规库存
