UT 系列三通管接头

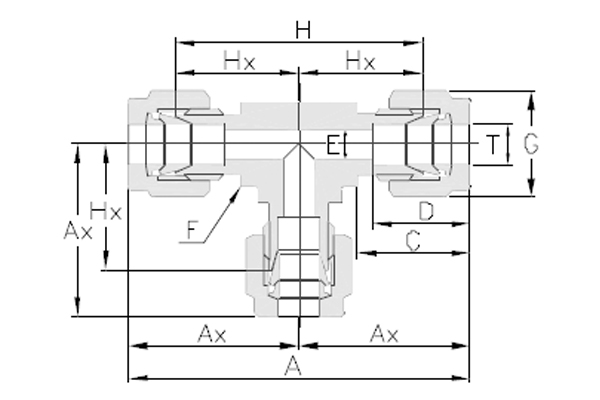

- 安装尺寸图
- 订购指南
英制
|
T 管外径 in. |
型 号 |
A in. |
Ax in. |
C in. |
D in. |
E in. |
F 六角尺寸 in. |
G 六角尺寸 in. |
H in. |
Hx in. |
| 1/8 | SS-UT-TF2 | 1.76 | 0.88 | 0.60 | 0.50 | 0.09 | 3/8 | 7/16 | 1.24 | 0.62 |
| 3/16* | SS-UT-TF3 | 1.92 | 0.96 | 0.63 | 0.54 | 0.12 | 7/16 | 1/2 | 1.40 | 0.70 |
| 1/4 | SS-UT-TF4 | 2.12 | 1.06 | 0.70 | 0.60 | 0.19 | 1/2 | 9/16 | 1.54 | 0.77 |
| 5/16* | SS-UT-TF5 | 2.34 | 1.17 | 0.73 | 0.64 | 0.25 | 5/8 | 5/8 | 1.76 | 0.88 |
| 3/8 | SS-UT-TF6 | 2.40 | 1.20 | 0.76 | 0.66 | 0.28 | 5/8 | 11/16 | 1.82 | 0.91 |
| 1/2 | SS-UT-TF8 | 2.84 | 1.42 | 0.86 | 0.90 | 0.41 | 13/16 | 7/8 | 2.04 | 1.02 |
| 5/8* | SS-UT-TF10 | 3.06 | 1.53 | 0.86 | 0.96 | 0.50 | 1 | 1 | 2.26 | 1.13 |
| 3/4 | SS-UT-TF12 | 3.14 | 1.57 | 0.86 | 0.96 | 0.62 | 1-1/16 | 1-1/8 | 2.34 | 1.17 |
| 1 | SS-UT-TF16 | 3.86 | 1.93 | 1.04 | 1.23 | 0.88 | 1-3/8 | 1-1/2 | 2.90 | 1.45 |
公制
|
T 管外径 mm |
型 号 |
A mm |
Ax mm |
C mm |
D mm |
E mm |
F 六角尺寸 mm |
G 六角尺寸 mm |
H mm |
Hx mm |
| 3 | SS-UT-TF3M | 44.7 | 22.3 | 15.3 | 12.9 | 2.4 | 9.50 | 12 | 31.5 | 15.7 |
| 6 | SS-UT-TF6M | 53.9 | 27.0 | 17.7 | 15.3 | 4.8 | 12.7 | 14 | 39.1 | 19.6 |
| 8 | SS-UT-TF8M | 59.7 | 29.9 | 18.6 | 16.2 | 6.4 | 16.0 | 16 | 44.7 | 22.4 |
| 10 | SS-UT-TF10M | 63.0 | 31.5 | 19.5 | 17.2 | 7.9 | 20.5 | 19 | 47.8 | 23.9 |
| 12 | SS-UT-TF12M | 72.0 | 36.0 | 22.0 | 22.8 | 9.5 | 20.5 | 22 | 51.8 | 25.9 |
| 14 | SS-UT-TF14M | 77.6 | 38.8 | 22.0 | 24.4 | 11.1 | 25.4 | 25 | 57.4 | 28.7 |
| 16* | SS-UT-TF16M | 77.6 | 38.8 | 22.0 | 24.4 | 12.7 | 25.4 | 25 | 57.4 | 28.7 |
| 18* | SS-UT-TF18M | 79.5 | 38.8 | 22.0 | 24.4 | 15.1 | 27 | 30 | 59.4 | 29.7 |
| 22* | SS-UT-TF22M | 89.3 | 44.6 | 22.0 | 26.0 | 18.3 | 35 | 32 | 69.1 | 34.5 |
| 25* | SS-UT-TF25M | 98.3 | 49.1 | 26.5 | 31.3 | 21.8 | 35 | 38 | 73.7 | 36.8 |
*：无常规库存
