MBT 系列外螺纹支三通

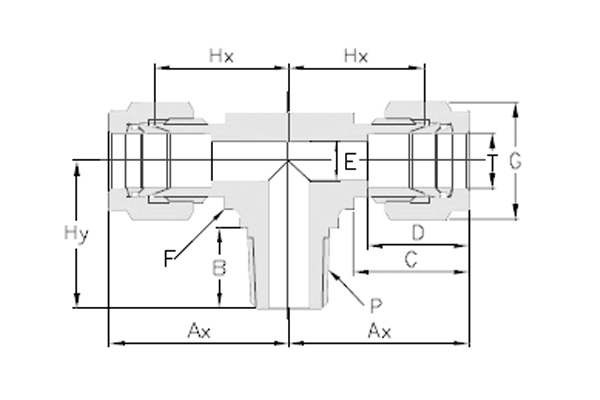

- 安装尺寸图
- 订购指南
英制
|
T 管外径 in. |
Tx 管外径 in. |
型 号 |
Ax in. |
B in. |
C in. |
D in. |
E in. |
F 六角尺寸 in. |
G 六角尺寸 in. |
Hx in. |
Hy in. |
| 1/8 | 1/8 | SS-MBT-TF2-NT2 | 0.93 | 0.38 | 0.60 | 0.50 | 0.09 | 7/16 | 7/16 | 0.67 | 0.70 |
| 1/8 | 1/4 | SS-MBT-TF2-NT4 | 0.97 | 0.56 | 0.60 | 0.50 | 0.09 | 1/2 | 7/16 | 0.71 | 0.92 |
| 3/16* | 1/8 | SS-MBT-TF3-NT2 | 0.96 | 0.38 | 0.63 | 0.54 | 0.12 | 7/16 | 1/2 | 0.70 | 0.70 |
| 1/4 | 1/8 | SS-MBT-TF4-NT2 | 1.06 | 0.38 | 0.70 | 0.60 | 0.19 | 1/2 | 9/16 | 0.77 | 0.74 |
| 1/4 | 1/4 | SS-MBT-TF4-NT4 | 1.06 | 0.56 | 0.70 | 0.60 | 0.19 | 1/2 | 9/16 | 0.77 | 0.92 |
| 5/16* | 1/8 | SS-MBT-TF5-NT2 | 1.17 | 0.38 | 0.73 | 0.64 | 0.19 | 5/8 | 5/8 | 0.88 | 0.82 |
| 3/8 | 1/4 | SS-MBT-TF6-NT4 | 1.20 | 0.56 | 0.76 | 0.66 | 0.28 | 5/8 | 11/16 | 0.91 | 1.00 |
| 3/8 | 3/8 | SS-MBT-TF6-NT6 | 1.31 | 0.56 | 0.76 | 0.66 | 0.28 | 13/16 | 11/16 | 1.02 | 1.11 |
| 1/2 | 3/8 | SS-MBT-TF8-NT6 | 1.42 | 0.56 | 0.86 | 0.90 | 0.38 | 13/16 | 7/8 | 1.02 | 1.11 |
| 1/2 | 1/2 | SS-MBT-TF8-NT8 | 1.42 | 0.75 | 0.86 | 0.90 | 0.41 | 13/16 | 7/8 | 1.02 | 1.30 |
| 5/8* | 1/2 | SS-MBT-TF10-NT8 | 1.53 | 0.75 | 0.86 | 0.96 | 0.47 | 1 | 1 | 1.13 | 1.41 |
| 3/4 | 3/4 | SS-MBT-TF12-NT12 | 1.57 | 0.75 | 0.86 | 0.96 | 0.62 | 1-1/16 | 1-1/8 | 1.17 | 1.45 |
|
T 管外径 in. |
Tx 锥管螺纹 R ( BSPT ) |
型 号 |
Ax in. |
B in. |
C in. |
D in. |
E in. |
F 六角尺寸 in. |
G 六角尺寸 in. |
Hx in. |
Hy in. |
| 1/8 | 1/8 | SS-MBT-TF2-RT2 | 0.93 | 0.38 | 0.60 | 0.50 | 0.09 | 7/16 | 7/16 | 0.67 | 0.70 |
| 1/8 | 1/4 | SS-MBT-TF2-RT4 | 0.97 | 0.56 | 0.60 | 0.50 | 0.09 | 1/2 | 7/16 | 0.71 | 0.92 |
| 1/4 | 1/8 | SS-MBT-TF4-RT2 | 1.06 | 0.38 | 0.70 | 0.60 | 0.19 | 1/2 | 9/16 | 0.77 | 0.74 |
| 1/4 | 1/4 | SS-MBT-TF4-RT4 | 1.06 | 0.56 | 0.70 | 0.60 | 0.19 | 1/2 | 9/16 | 0.77 | 0.92 |
| 3/8 | 1/4 | SS-MBT-TF6-RT4 | 1.20 | 0.56 | 0.76 | 0.66 | 0.28 | 5/8 | 11/16 | 0.91 | 1.00 |
| 3/8 | 3/8 | SS-MBT-TF6-RT6 | 1.31 | 0.56 | 0.76 | 0.66 | 0.28 | 13/16 | 11/16 | 1.02 | 1.11 |
| 1/2 | 1/2 | SS-MBT-TF8-RT8 | 1.42 | 0.75 | 0.86 | 0.90 | 0.41 | 13/16 | 7/8 | 1.02 | 1.30 |
| 3/4 | 3/4 | SS-MBT-TF12-RT12 | 1.57 | 0.75 | 0.86 | 0.96 | 0.62 | 1-1/16 | 1-1/8 | 1.17 | 1.45 |
公制
|
T 管外径 mm |
Tx 管外径 in. |
型 号 |
Ax mm |
B mm |
C mm |
D mm |
E mm |
F 六角尺寸 mm |
G 六角尺寸 mm |
Hx mm |
Hy mm |
| 6 | 1/8 | SS-MBT-TF6M-NT2 | 27.0 | 9.70 | 17.7 | 15.3 | 4.8 | 12.7 | 14 | 19.6 | 18.8 |
| 6 | 1/4 | SS-MBT-TF6M-NT4 | 27.0 | 14.2 | 17.7 | 15.3 | 4.8 | 16.0 | 14 | 19.6 | 23.4 |
| 8 | 1/8 | SS-MBT-TF8M-NT2 | 29.9 | 9.70 | 18.6 | 16.2 | 4.8 | 16.0 | 16 | 22.4 | 20.8 |
| 8 | 1/4 | SS-MBT-TF8M-NT4 | 29.9 | 14.2 | 18.6 | 16.2 | 6.4 | 16.0 | 16 | 22.4 | 25.4 |
| 10 | 1/4 | SS-MBT-TF10M-NT4 | 33.5 | 14.2 | 19.5 | 17.2 | 7.1 | 20.5 | 19 | 25.9 | 28.2 |
| 12 | 1/4 | SS-MBT-TF12M-NT4 | 36.0 | 14.2 | 22.0 | 22.8 | 7.1 | 20.5 | 22 | 25.9 | 28.2 |
| 12 | 3/8 | SS-MBT-TF12M-NT6 | 36.0 | 14.2 | 22.0 | 22.8 | 9.5 | 20.5 | 22 | 25.9 | 28.2 |
| 12 | 1/2 | SS-MBT-TF12M-NT8 | 36.0 | 19.0 | 22.0 | 22.8 | 9.5 | 23.8 | 22 | 25.9 | 33.0 |
|
T 管外径 mm |
Tx 锥管螺纹 R ( BSPT ) |
型 号 |
Ax mm |
B mm |
C mm |
D mm |
E mm |
F 六角尺寸 mm |
G 六角尺寸 mm |
Hx mm |
Hy mm |
| 6 | 1/4 | SS-MBT-TF6M-RT4 | 27.0 | 14.2 | 17.7 | 15.3 | 4.8 | 16.0 | 14 | 19.6 | 23.4 |
| 8 | 1/4 | SS-MBT-TF8M-RT4 | 29.9 | 14.2 | 18.6 | 16.2 | 6.4 | 16.0 | 16 | 22.4 | 25.4 |
| 12 | 3/8 | SS-MBT-TF12M-RT6 | 36.0 | 14.2 | 22.0 | 22.8 | 9.5 | 20.5 | 22 | 25.9 | 28.2 |
*：无常规库存
